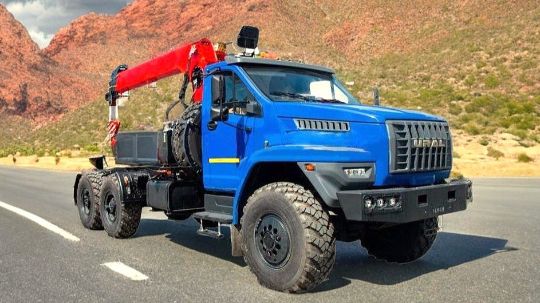

URAL TRUCK WITH CRANE-MANIPULATOR UNIT
TECHNICAL SPECIFICATIONS
| Chassis | URAL Next 4320 | |
| Wheel formula | 6×6 | |
| Working volume | 6,650 cm³ | |
| Chassis load capacity | 12,500 kg | |
| Engine model | YAM3-53623-10, Euro-5 | |
| Engine power | 208 kW (283 HP) | |
| Transmission | YAMZ-1105, 5-speed | |
| Fuel tank | 300 L | |
| Tires | 425/85 R21 | |
| Cab |
| |
| Comfort and Safety |
| |
| Locks and Drives |
| |
| Equipment (Features) |
|
| Chassis | URAL Next 4320 | |
| Wheel formula | 6×6 | |
| Working volume | 6,650 cm³ | |
| Chassis load capacity | 12,500 kg | |
| Engine model | YAM3-53623-10, Euro-5 | |
| Engine power | 208 kW (283 HP) | |
| Transmission | YAMZ-1105, 5-speed | |
| Fuel tank | 300 L | |
| Tires | 425/85 R21 | |
| Cab |
| |
| Comfort and Safety |
| |
| Locks and Drives |
| |
| Equipment (Features) |
|
TECHNICAL SPECIFICATIONS OF THE KANGLIM KS 2056 N CRANE-MANIPULATOR INSTALLATION WITH A NEGATIVE ANGLE
| Lifting capacity at minimum reach, kg/m. | 7100/2 | |
| Maximum working radius (m) | 20,3 | |
| maximum lifting height (m) | 23,3 | |
| Arrow Type | 6 - sided | |
| Number of steps | 6 steps | |
| Boom extension speed (m/sec) | 15.50/42 | |
| Rotation angle | 360° continuously | |
| Rotation speed (min/revolution) | 2.0 | |
| Rope (winch) (diameter*m) | 10*116 | |
| Speed of the hydraulic arm, m/min. | 16/4 | |
| Type of winch | Servo motor locking until the crane is set to manual brake | |
| Type of gearbox | Gearbox with worm drive | |
| Outriggers (supports) | Hydraulic extendable supports | |
| Outriggers (departure), m | front 5.8, rear 4.5 | |
| CMU weight, kg | 3,970 kg |
| Lifting capacity at minimum reach, kg/m. | 7100/2 | |
| Maximum working radius (m) | 20,3 | |
| maximum lifting height (m) | 23,3 | |
| Arrow Type | 6 - sided | |
| Number of steps | 6 steps | |
| Boom extension speed (m/sec) | 15.50/42 | |
| Rotation angle | 360° continuously | |
| Rotation speed (min/revolution) | 2.0 | |
| Rope (winch) (diameter*m) | 10*116 | |
| Speed of the hydraulic arm, m/min. | 16/4 | |
| Type of winch | Servo motor locking until the crane is set to manual brake | |
| Type of gearbox | Gearbox with worm drive | |
| Outriggers (supports) | Hydraulic extendable supports | |
| Outriggers (departure), m | front 5.8, rear 4.5 | |
| CMU weight, kg | 3,970 kg |
CONFIGURATION FEATURES
| A drawer for outrigger linings | A container designed for the storage and transportation of pads used for stabilizing outriggers of construction and lifting machines | |
| The coupling device | Height of the fifth-wheel coupling device, mm: 1490/1530
Load on the fifth-wheel coupling device, kg: 12,000 | |
| Mounting for anti-rollback stops | It serves to securely fix the anti-rollback blocks, preventing their movement and ensuring stability on inclined surfaces | |
| Additional stairs for emergency descent | It is installed on the opposite side of the manipulator installation and is intended for emergency descent to the ground | |
| Awning for operator's seat | It effectively protects against rain, snow, and other adverse weather conditions | |
| Lighting | Working platform and outrigger parking area. It provides bright light that can be adjusted both in angle and intensity
| |
| Washstand | Automotive with a capacity of 30 liters. At the bottom, there is a tap for convenient water dispensing, and at the top, there is a reservoir with a dispenser for liquid soap | |
| A walkie-talkie for communication | To maintain constant communication with other team members, which directly impacts work safety |
| A drawer for outrigger linings | A container designed for the storage and transportation of pads used for stabilizing outriggers of construction and lifting machines | |
| The coupling device | Height of the fifth-wheel coupling device, mm: 1490/1530 Load on the fifth-wheel coupling device, kg: 12,000 | |
| Mounting for anti-rollback stops | It serves to securely fix the anti-rollback blocks, preventing their movement and ensuring stability on inclined surfaces | |
| Additional stairs for emergency descent | It is installed on the opposite side of the manipulator installation and is intended for emergency descent to the ground | |
| Awning for operator's seat | It effectively protects against rain, snow, and other adverse weather conditions | |
| Lighting | Working platform and outrigger parking area. It provides bright light that can be adjusted both in angle and intensity | |
| Washstand | Automotive with a capacity of 30 liters. At the bottom, there is a tap for convenient water dispensing, and at the top, there is a reservoir with a dispenser for liquid soap | |
| A walkie-talkie for communication | To maintain constant communication with other team members, which directly impacts work safety |
| Chassis warranty | 24 months or 100,000 km | |
| Warranty for CMU and platform | 12 months |
| Chassis warranty | 24 months or 100,000 km | |
| Warranty for CMU and platform | 12 months |
