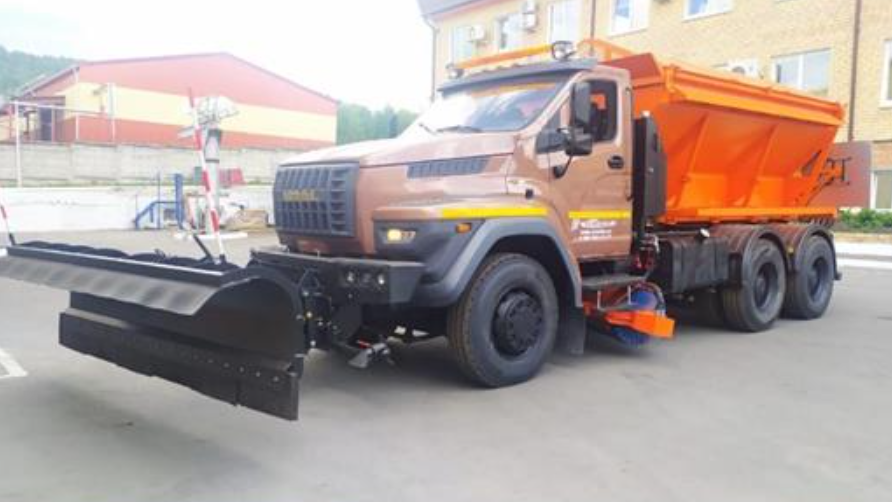

URAL CRM VEHICLE
TECHNICAL SPECIFICATIONS
| Chassis | URAL Next 4320 | |
| Wheel formula | 6×6 | |
| Working volume | 6,650 cm³ | |
| Chassis load capacity | 12,500 kg | |
| Engine model | YAM3-53623-10, Euro-5 | |
| Engine power | 208 kW (283 HP) | |
| Transmission | YAMZ-1105, 5-speed | |
| Fuel tank | 300 L | |
| Tires | 425/85 R21 | |
| Technically permissible maximum weight of the chassis | 21 300 kg | |
| Front suspension |
| |
| Rear suspension |
| |
| Cab |
| |
| Comfort and Safety |
| |
| Locks and Drives |
| |
| Equipment (Features) |
|
| Chassis | URAL Next 4320 | |
| Wheel formula | 6×6 | |
| Working volume | 6,650 cm³ | |
| Chassis load capacity | 12,500 kg | |
| Engine model | YAM3-53623-10, Euro-5 | |
| Engine power | 208 kW (283 HP) | |
| Transmission | YAMZ-1105, 5-speed | |
| Fuel tank | 300 L | |
| Tires | 425/85 R21 | |
| Technically permissible maximum weight of the chassis | 21 300 kg | |
| Front suspension |
| |
| Rear suspension |
| |
| Cab |
| |
| Comfort and Safety |
| |
| Locks and Drives |
| |
| Equipment (Features) |
|

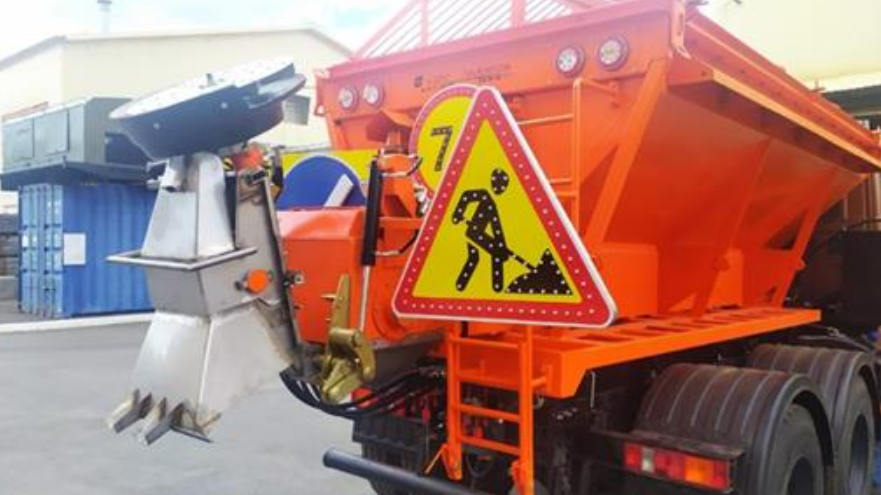

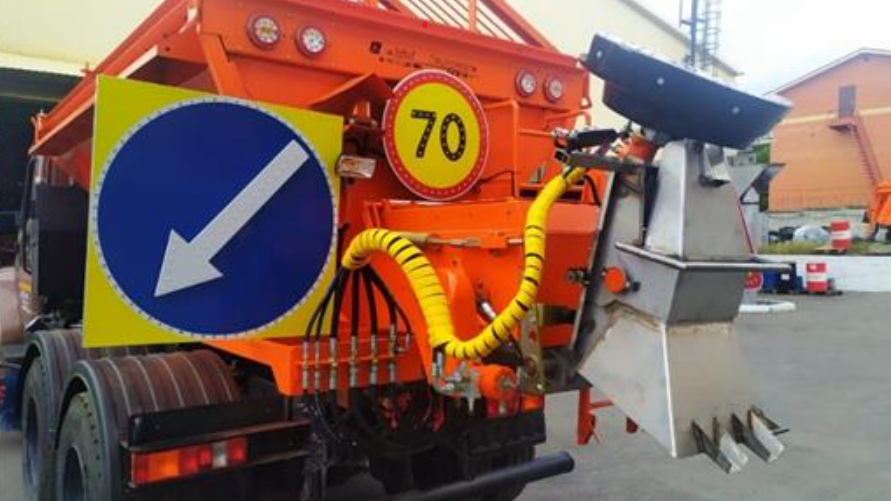

TECHNICAL SPECIFICATIONS FOR SAND-SALT SPREADING EQUIPMENT
| Volume of the dry material container, m³ | Up to 6.5 | |
| Density of the spreading of pure salt, g/m² | 5 - 55 | |
| Density of the spreading of the sand-salt mixture, g/m² | 50 - 500 | |
| Width of distribution and variation of spreading width, mm | 2000 - 10000 | |
| Drive of the conveyor | Hydraulic, using a hydraulic motor and mechanical gearbox | |
| Type of conveyor | scraper | |
| Pitch of the scrapers, mm | 406 | |
| Center-to-center distance for the installation of sprockets, mm | 330 | |
| Type of gearbox | Conical-cylindrical | |
| Type of chains | 2 (two) drive roller units with replaceable scrapers | |
| Hopper wall thickness, mm | 4 | |
| Thickness of the conveyor guide, mm | 6 | |
| Thickness of the stiffeners, mm | 4 | |
| Shape of the hopper | Trapezoidal | |
| Angle of inclination of the front wall of the hopper, degrees | 138 | |
| The angle of inclination of the side walls of the hopper, deg | 136 | |
| Conveyor scraper length, mm | 490 | |
| Width of the conveyor movement tray, mm | 558 | |
| Diameter of the disc, mm | 580 | |
| Distributing disk | Equipped with 8 corner-type blades. | |
| Adjusting the height of the spreading disc from the ground surface | 200 - 439 | |
| The protective grate of the sand spreader is removable, with an opening hatch, with a bar thickness of mm | 14 | |
| The pitch of the bars of the grid, mm | 70 | |
| The distance between the stiffeners, mm | 1600 | |
| Number of stiffeners, pcs | 6 (3 pieces on each side) |
| Volume of the dry material container, m³ | Up to 6.5 | |
| Density of the spreading of pure salt, g/m² | 5 - 55 | |
| Density of the spreading of the sand-salt mixture, g/m² | 50 - 500 | |
| Width of distribution and variation of spreading width, mm | 2000 - 10000 | |
| Drive of the conveyor | Hydraulic, using a hydraulic motor and mechanical gearbox | |
| Type of conveyor | scraper | |
| Pitch of the scrapers, mm | 406 | |
| Center-to-center distance for the installation of sprockets, mm | 330 | |
| Type of gearbox | Conical-cylindrical | |
| Type of chains | 2 (two) drive roller units with replaceable scrapers | |
| Hopper wall thickness, mm | 4 | |
| Thickness of the conveyor guide, mm | 6 | |
| Thickness of the stiffeners, mm | 4 | |
| Shape of the hopper | Trapezoidal | |
| Angle of inclination of the front wall of the hopper, degrees | 138 | |
| The angle of inclination of the side walls of the hopper, deg | 136 | |
| Conveyor scraper length, mm | 490 | |
| Width of the conveyor movement tray, mm | 558 | |
| Diameter of the disc, mm | 580 | |
| Distributing disk | Equipped with 8 corner-type blades. | |
| Adjusting the height of the spreading disc from the ground surface | 200 - 439 | |
| The protective grate of the sand spreader is removable, with an opening hatch, with a bar thickness of mm | 14 | |
| The pitch of the bars of the grid, mm | 70 | |
| The distance between the stiffeners, mm | 1600 | |
| Number of stiffeners, pcs | 6 (3 pieces on each side) |
| The sand-salt spreading equipment is equipped with canopies to prevent the spillage of bulk materials into the dump truck's body, a metal ladder, and an additional set of duplicate rear lights. Additionally, it features an upper service platform for inspecting the conveyor. | |
| The stiffeners are elements of the hopper that are installed perpendicularly to the side walls of the hopper and precisely replicate the contour of the side wall. These stiffeners are sheet-type with reinforcement made from profile tubing. They do not serve as a welding point for two adjacent sheets of metal from the side wall of the sand spreader hopper. These stiffeners are manufactured from carbon steel, ensuring durability and structural integrity under operational conditions. | |
| The equipment is fitted with a shutter device designed to regulate the flow of technological material to the spreading mechanism by altering the cross-sectional area of the discharge opening. The flap can be rotated using a drive system that allows it to pivot at the required angle. This drive consists of a spring-loaded rod connected to a screw mechanism, ensuring precise control over the flap's position. The shutter flap is equipped with a spring mechanism to prevent it from jamming or being damaged when larger fractions of material pass through, thereby enhancing the reliability and efficiency of the material distribution process. |
| The sand-salt spreading equipment is equipped with canopies to prevent the spillage of bulk materials into the dump truck's body, a metal ladder, and an additional set of duplicate rear lights. Additionally, it features an upper service platform for inspecting the conveyor. | |
| The stiffeners are elements of the hopper that are installed perpendicularly to the side walls of the hopper and precisely replicate the contour of the side wall. These stiffeners are sheet-type with reinforcement made from profile tubing. They do not serve as a welding point for two adjacent sheets of metal from the side wall of the sand spreader hopper. These stiffeners are manufactured from carbon steel, ensuring durability and structural integrity under operational conditions. | |
| The equipment is fitted with a shutter device designed to regulate the flow of technological material to the spreading mechanism by altering the cross-sectional area of the discharge opening. The flap can be rotated using a drive system that allows it to pivot at the required angle. This drive consists of a spring-loaded rod connected to a screw mechanism, ensuring precise control over the flap's position. The shutter flap is equipped with a spring mechanism to prevent it from jamming or being damaged when larger fractions of material pass through, thereby enhancing the reliability and efficiency of the material distribution process. |
TECHNICAL SPECIFICATIONS
FOR STREET SWEEPING EQUIPMENT
| The tank is designed for |
| |
| Material of construction | Plastic | |
| Total capacity, m3 | 10 | |
| NC 60/125 pump |
| |
| Possibility to connect a hose for irrigation and firefighting purposes | availability | |
| working water pressure | at least 0.8 MPa | |
| width of the processed strip | from 2.5 to 20 meters | |
| Capacity of containers | 10 m3, but not more than the permissible weight of the superstructure with a load, with a pump, with a front irrigation rail with two rotary nozzles installed under the front bumper |
| The tank is designed for |
| |
| Material of construction | Plastic | |
| Total capacity, m3 | 10 | |
| NC 60/125 pump |
| |
| Possibility to connect a hose for irrigation and firefighting purposes | availability | |
| working water pressure | at least 0.8 MPa | |
| width of the processed strip | from 2.5 to 20 meters | |
| Capacity of containers | 10 m3, but not more than the permissible weight of the superstructure with a load, with a pump, with a front irrigation rail with two rotary nozzles installed under the front bumper |
| Chassis warranty | 24 months or 100,000 km of mileage | |
| Warranty on the add-on | 12 months |
| Chassis warranty | 24 months or 100,000 km. | |
| Warranty on the add-on | 12 months |
| |
| Plastic | |
| 10 | |
| |
| availability | |
| at least 0.8 MPa | |
| from 2.5 to 20 meters | |
| 10 m3, but not more than the permissible weight of the superstructure with a load, with a pump, with a front irrigation rail with two rotary nozzles installed under the front bumper |
